Mechanisms of Suanzaoren (Ziziphi Spinosae Semen) and its processed products in treating insomnia: an integrated study based on network pharmacology and metabolomics

doi:10.19852/j.cnki.jtcm.2025.06.010

Abstract

Abstract:

OBJECTIVE: To elucidate the potential mechanisms and identify bioactive components of Suanzaoren (Ziziphi Spinosae Semen) (ZSS) and it’s processed products for insomnia treatment.

METHODS: The principal components of ZSS and its processed products were analyzed using Ultra-Performance liquid chromatography quadrupole time-of-flight mass spectrometry (UPLC-Q-TOF-MS). The effects of ZSS on insomnia were assessed in para-chlorophenylalanine (PCPA)-induced rats. Additionally, to investigate the mechanisms of action in insomnia, serum and hippocampal non-targeted metabolomics were performed alongside network pharmacology and molecular docking.

RESULTS: UPLC-Q-TOF-MS was used to analyze the main components of ZSS and its processed products. In the insomnia rat model induced by PCPA, both ZSS and its processed products demonstrated therapeutic effects, with the processed products showing particularly significant effects, significantly increasing the levels of the Gamma-Aminobutyric Acid and melatonin. Non-targeted metabolomics identified 23 and 10 potential differential metabolites in serum and hippocampus, respectively, involving pathways such as lipid metabolism and amino acid metabolism. Network pharmacology identified three core targets, mainly associated with pathways such as Transient Receptor Potential channel regulation, Advanced Glycation End-products-Receptor for Advanced Glycation End-products signaling pathway, and neuroactive ligand-receptor interaction. Molecular docking confirmed that the main active components of ZSS can stably bind to these core targets, thereby exerting an effect in improving insomnia.

CONCLUSIONS: Combining in vivo experiments, metabolomics, and network pharmacology, we have identified potential pharmacological mechanisms by which ZSS and its derivatives mitigate insomnia. These findings provide a theoretical foundation for the further development and utilization of ZSS, supporting the innovation of new therapeutic agents for insomnia treatment.

Key words: Suanzaoren (Ziziphi Spinosae Semen), insomnia, metabolomics, network pharmacology

ZHANG Yuan, CHENG Shizan, HUA Yue, SHI Ji, SU Guoming, ZHANG Chao, LIAN Jing, LIU Pengpeng, JIA Tianzhu. Mechanisms of Suanzaoren (Ziziphi Spinosae Semen) and its processed products in treating insomnia: an integrated study based on network pharmacology and metabolomics[J]. Journal of Traditional Chinese Medicine, 2025, 45(6): 1307-1316.

Figures/Tables 8

Table 1 Exercise time (s, x - ?± s)

Group	n	Horizontal movement	Vertical movement	Movement time
NC	6	67.5±5.7^a	18.2±2.6^a	125.1±6.0^a
MC	6	96.8±3.8	31.8±2.3	175.43±8.5
PC	6	70.0±5.3^b	22.0±2.6^a	135.29±4.7^a
ZSS	6	79.5±4.6^a	27.3±5.1	158.00±7.2^a
FZSS	6	77.0±6.5^a	27.0±2.6	157.43±6.5^a
SZSS	6	69.7±4.3^a	21.0±3.2^a	138.14±9.7^a

Table 2 Body weight changes ( x - ?± s)

Group	n	0 d	3 d	6 d	9 d	12 d	15 d	17 d
NC	6	261.6±1.7	268.0±3.7^b	271.5±3.2^b	272.2±3.1^b	273.3±2.1^b	281.8±2.0^b	286.3±0.6^b
MC	6	262.5±2.1	239.8±2.3	226.9±3.1	235.7±3.9	245.0±5.1	251.0±6.2	260.8±7.9
PC	6	263.8±3.9	249.2±4.3^a	256.2±6.7^b	265.6±6.9^b	277.5±9.9^b	287.9±6.1^b	297.4±8.5^b
ZSS	6	256.2±4.1	246.3±6.1	242.2±3.9^b	250.8±5.1^b	263.9±10.5^b	275.3±12.3^b	282.9±11.3^b
FZSS	6	259.8±6.0	246.8±4.3	252.3±6.9^b	260.6±4.2^b	271.6±6.9^b	280.2±9.2^b	293.2±15.5^b
SZSS	6	259.1±4.9	241.6±7.0	249.8±2.8^b	256.9±3.4^b	268.2±4.8^b	276.1±6.3^b	285.8±4.5^b

Table 3 Neurogenic factor levels in the serum of the rats ( x - ?± s)

Group	n	5-HT (ng/mL)	GABA (μmol/L)	ACH (ng/mL)	DA (pg/mL)	MT(ng/L)
NC	6	17.4±0.6	9.0±1.0	70.0±3.6^b	1592.3±56.6^b	71.0±5.0^b
MC	6	16.7±0.5	8.6±0.7	86.0±3.3	3073.9±424.6	44.0±3.1
PC	6	17.8±0.8^a	9.4±1.0	68.7±1.7	2648.8±244.0^b	68.9±4.9^b
ZSS	6	18.6±1.1^b	9.3±1.2	75.3±3.8	2924.6±510.7^a	50.2±4.8
FZSS	6	18.4±0.6^a	11.4±1.1^b	79.1±5.1	2927.4±229.0	60.4±2.4^b
SZSS	6	18.7±0.8^b	11.8±1.8^b	75.9±13.2^b	1859.0±545.1^a	71.7±4.2^b

Figure 1 The degree of brain tissue damage in each group of rats HE staining images (× 100, scale bar = 50 μm) of hippocampus. A: NC group, B: MC group, C: PC group, D: ZSS group, E: FZSS group, F: SZSS group. NC group: treated only with physiological saline; MC group: treated only with PCPA 400 mg/kg; PC group: treated with 400 mg/kg PCPA + 0.52 mg/kg PC; ZSS group: treated only with 400 mg/kg PCPA + 3 g/kg ZSS; FZSS group: treated with 400 mg/kg PCPA + 3 g/kg FZSS; SZSS group: treated with 400 mg/kg PCPA + 3 g/kg SZSS. ZSS: Suanzaoren (Ziziphi Spinosae Semen); MC: model control; PC: positive control; FZSS: frying Suanzaoren (Ziziphi Spinosae Semen); SZSS: steaming Suanzaoren (Ziziphi Spinosae Semen); PCPA: para-chlorophenylalanine.

Figure 2 Immunohistochemistry analysis of rats A: expression of GABA in the hippocampal; B: expression of 5-HT in the hippocampal; A1, B1: NC group; A2, B2: MC group; A3, B3: PC group; A4, B4: ZSS group; A5, B5: FZSS group; A6, B6: SZSS group. NC group: treated only with physiological saline; MC group: treated only with PCPA 400 mg/kg; PC group: treated with 400 mg/kg PCPA + 0.52 mg/kg PC; ZSS group: treated only with 400 mg/kg PCPA + 3 g/kg ZSS; FZSS group: treated with 400 mg/kg PCPA + 3 g/kg FZSS; SZSS group: treated with 400 mg/kg PCPA + 3 g/kg SZSS. ZSS: Suanzaoren (Ziziphi Spinosae Semen); MC: model control; PC: positive control; FZSS: frying Suanzaoren (Ziziphi Spinosae Semen); SZSS: steaming Suanzaoren (Ziziphi Spinosae Semen); PCPA: para-chlorophenylalanine; GABA: gamma-aminobutyric acid; 5-HT: 5-hydroxytryptamine.

Table 4 mRNA expression levels in rats ( x ? -± s)

Item	NC (n = 6)	MC (n = 6)	PC (n = 6)	ZSS (n = 6)	FZSS (n = 6)	SZSS (n = 6)
CHRNA7	1.04±0.13^a	2.37±0.21	1.71±0.16^b	2.16±0.10^a	1.21±0.09^a	1.07±0.08^a
DRD2	1.05±0.24^a	3.52±0.70	1.48±0.51^a	1.73±0.19^a	1.66±0.18^a	1.05±0.04^a

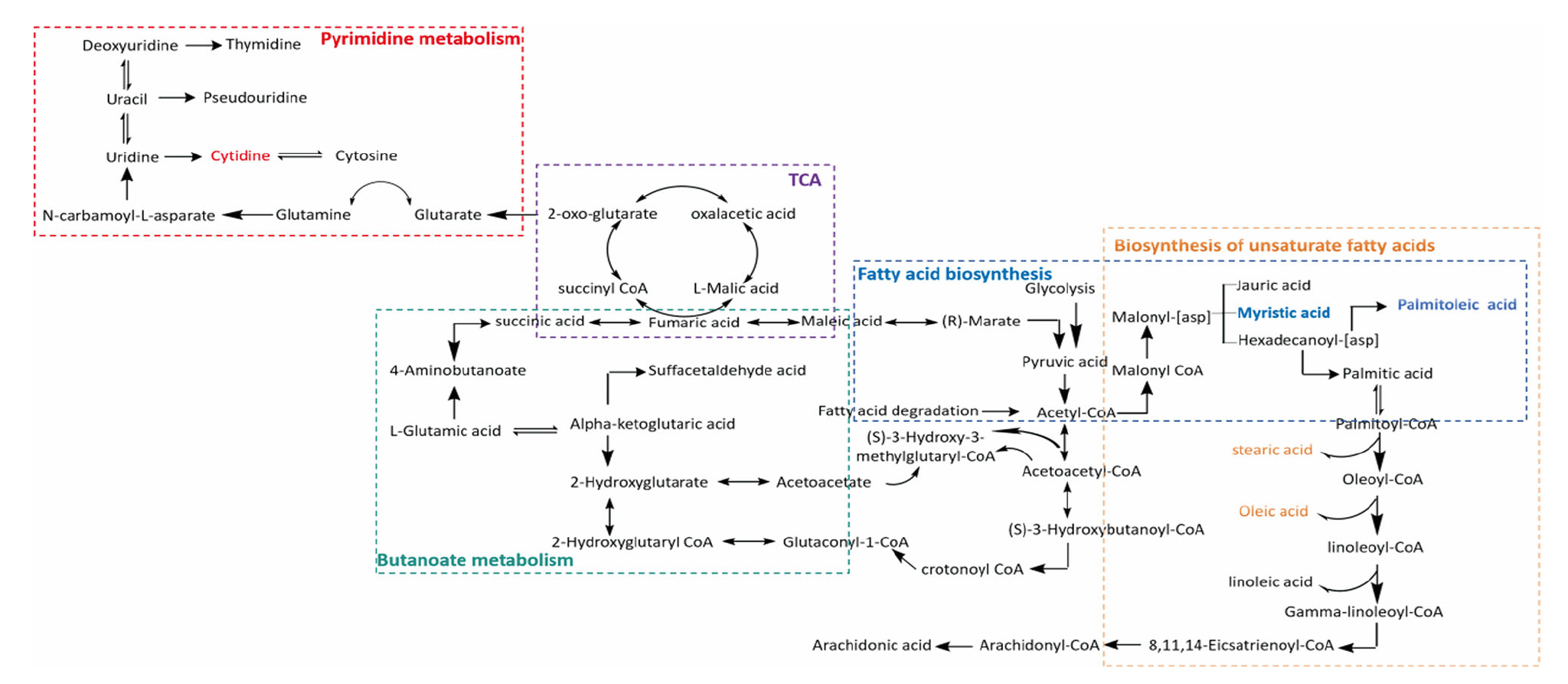

Figure 3 The metabolic network diagram involved in the improvement of insomnia by Suanzaoren (Ziziphi Spinosae Semen) TCA: tricarboxylic acid cycle.

Figure 4 Network pharmacological analysis results A: network topology analysis of the main components of ZSS and shared targets; B: PPI analysis of shared targets. ZSS: Suanzaoren (Ziziphi Spinosae Semen); PPI: protein protein interaction.

References 19.

1.	Charnay Y, Léger L. Brain serotonergic circuitries. Dialogues Clin Neurosci 2010; 12: 471-87. DOI URL
2.	Fan L, Gu C, Jiang Y, et al. Screening of different chemical components of sedative and hypnotic effects of Ziziphi Spinosae Semen before and after frying and determination of the q-marker. J Chromatogr B Analyt Technol Biomed Life Sci 2022; 1207: 123349. DOI URL
3.	Wang D, Ho CT, Bai N. Ziziphi Spinosae Semen: an updated review on pharmacological activity, quality control, and application. J Food Biochem 2022; 46: e14153.
4.	Bian Z, Zhang W, Tang J, et al. Mechanisms Underlying the Action of Ziziphi Spinosae Semen in the treatment of insomnia: a study involving network pharmacology and experimental validation. Front Pharmacol 2021; 12: 752211. DOI URL
5.	Zhang M, Liu J, Zhang Y, Xie J. Ziziphi Spinosae Semen: a natural herb resource for treating neurological disorders. Curr Top Med Chem 2022; 22: 1379-91. DOI PMID
6.	He SR, Zhao CB, Zhang JX, Wang J, Wu B, Wu CJ. Botanical and traditional uses and phytochemical, pharmacological, pharmacokinetic, and toxicological characteristics of Ziziphi Spinosae Semen: a review. Evid Based Complement Alternat Med 2020; 2020: 5861821. DOI URL
7.	Guo XJ, Li HQ, Feng HT, et al. Quality analysis of Ziziphi Spinosae Semen extracts based on high performance liquid chromatography quantitative fingerprint and ultra-high performance liquid chromatography-tandem mass spectrometry quantification. Se pu 2021, 39: 989-97.
8.	Lei H, Wang X, Zhang Y, et al. Herba Cistanche (Rou Cong Rong): a review of its phytochemistry and pharmacology. Chem Pharm Bull (Tokyo) 2020; 68: 694-712. DOI URL
9.	Li Z, Du F, Xie YJ, et al. Multi-index comprehensive evaluation combined with hierarchical analysis to optimize the process of jujube kernel frying. Zhong Cao Yao 2021; 52: 4811-24.
10.	Ren G, Zhong Y, Ke G, et al. The mechanism of compound anshen essential oil in the treatment of insomnia was examined by network pharmacology. Evid Based Complement Alternat Med 2019; 2019: 9241403.
11.	Liu J, Shi JL, Guo JY, et al. Anxiolytic-like effect of Suanzaoren-Wuweizi herb-pair and evidence for the involvement of the monoaminergic system in mice based on network pharmacology. BMC Complement Med Ther 2023; 23: 7. DOI PMID
12.	Byeon CH, Hansen KH, Jeffrey J, Saricayir H, Andreasen M, Akbey Ü. Intrinsically disordered pseudomonas chaperone fapa slows down the fibrillation of major biofilm-forming functional amyloid fapc. Febs J 2024; 291: 1925-43. DOI URL
13.	Sahu N, Madan S, Walia R, et al. Multi-target mechanism of solanum xanthocarpum for treatment of psoriasis based on network pharmacology and molecular docking. Saudi pharm J 2023; 31: 101788. DOI URL
14.	Lin YF, Liu ZD, Ma W, Shen WD. Hazards of insomnia and the effects of acupuncture treatment on insomnia. J Integr Med 2016; 14: 174-86. DOI URL
15.	Bao Y, Zhou H, Fu Y, Wang C, Huang Q. Zhumian granules improves PCPA-induced insomnia by regulating the expression level of neurotransmitters and reducing neuronal apoptosis. J ethnopharmacol 2024; 327: 118048.
16.	Lee S, Jung W, Eom S, Yeom HD, Park HD, Lee JH. Molecular regulation of betulinic acid on α3β4 nicotinic acetylcholine receptors. Molecules 2021; 26: 2659. DOI URL
17.	Kim TH, Custodio RJ, Cheong JH, Kim HJ, Jung YS. Sleep promoting effect of luteolin in mice via adenosine a1 and a2a receptors. Biomol Ther (seoul) 2019; 27: 584-90. DOI URL
18.	Kambe D, Kotani M, Yoshimoto M, Kaku S, Chaki S, Honda K. Effects of quercetin on the sleep-wake cycle in rats: involvement of gamma-aminobutyric acid receptor type A in regulation of rapid eye movement sleep. Brain Res 2010; 1330: 83-8. DOI PMID
19.	Nikolaus S, Antke C, Beu M, Müller HW. Cortical GABA, striatal dopamine and midbrain serotonin as the key players in compulsive and anxiety disorders-results from in vivo imaging studies. Rev Neurosci 2010; 21: 119-39.
