An infrared thermographic analysis of the sensitization acupoints of women with primary dysmenorrhea

doi:10.19852/j.cnki.jtcm.20220707.004

Journal of Traditional Chinese Medicine ›› 2022, Vol. 42 ›› Issue (5): 825-832.DOI: 10.19852/j.cnki.jtcm.20220707.004

• Research Articles • Previous Articles Next Articles

An infrared thermographic analysis of the sensitization acupoints of women with primary dysmenorrhea

FAN Xisheng¹, DU Xiaoyi²(), PAN Lijia³^,⁶, SONG Xiaodan¹, LIU Jun⁴^,⁶, ZHANG Juncha⁶, CHEN Hao¹, GAO Yayu¹, ZHANG Mingjian¹, SHI Xuliang⁵^,⁶, SHE Yanfen³^,⁶()

1 Graduate School, Hebei University of Chinese Medicine, Shijiazhuang 050091, China
2 Depeartment of TCM Pediatric, Shijiazhuang Maternity and Child Healthcare Hospital, Shijiazhuang 050051, China
3 Department of Experimental Acupuncture, School of Acupuncture-Moxibustion and Tuina, Hebei University of Chinese Medicine, Shijiazhuang 050200, China
4 Department of Rehabilitation, School of Acupuncture-Moxibustion and Tuina, Hebei University of Chinese Medicine, Shijiazhuang 050200, China
5 Department of Basic Teaching and Research of Acupuncture, School of Acupuncture-Moxibustion and Tuina, Hebei University of Chinese Medicine, Shijiazhuang 050200, China
6 Hebei International Joint Research Center for Dominant Diseases in Chinese Medicine and Acupuncture

Received:2021-05-19 Accepted:2021-08-20 Online:2022-10-15 Published:2022-07-07
Contact: DU Xiaoyi,SHE Yanfen
About author:Dr. DU Xiaoyi, Depeartment of TCM Pediatric, Shijiazhuang Maternity and Child Healthcare Hospital, Shijiazhuang 050051, China. 522815413@qq.com Telephone: +86-311-89926278
Prof. She Yanfen, Department of Experimental Acupuncture, School of Acupuncture-Moxibustion and Tuina, Hebei University of Chinese Medicine, Shijiazhuang 050200, China. sheyanfen@163.com;
Supported by:
National Natural Science Foundation of China: on Acupoints on the Same Spinal Segment Different Meridians Reflecting Primary Dysmenorrhea Based on the Theory of One Source and Three Branches(81973755);Research on Variations of Biophysical Properties of Acupoints on Different Meridians with the Same Spinal Segments Based on Primary Dysmenorrhea(81573884);Based on the Study of Biophysical Characteristics of the Cytoplasm under Different Physiological States(81603542);Ministry of Science and Technology of China: International Cooperation on the Dominant Diseases of Acupuncture and Moxibustion based on the Guiding Principle of Acupoint Compatibility Classification(2019YFC171203);Graduate Innovation Funding Project of Hebei Province: Study on the Mechanism of Acupoint Specific Reaction in Different Pathological States of Uterus(XCXZZBS2021013)

Abstract

Abstract:

OBJECTIVE: To explore the sensitization acupoints of women with primary dysmenorrhea (PD) by comparing infrared radiation temperatures between acupoints and non-acupoints.

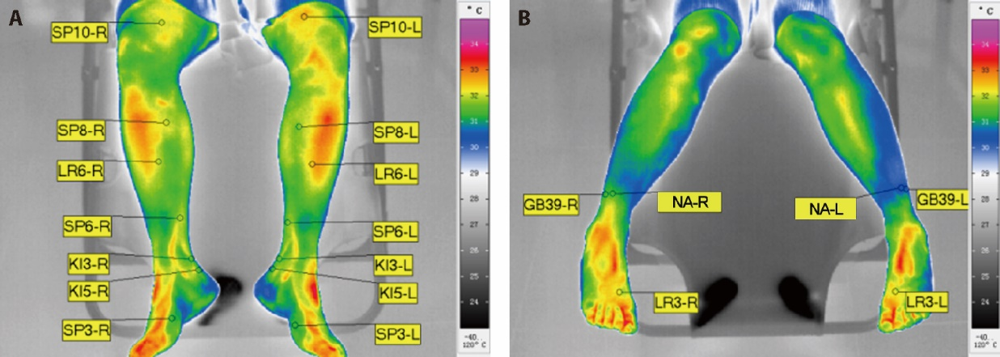

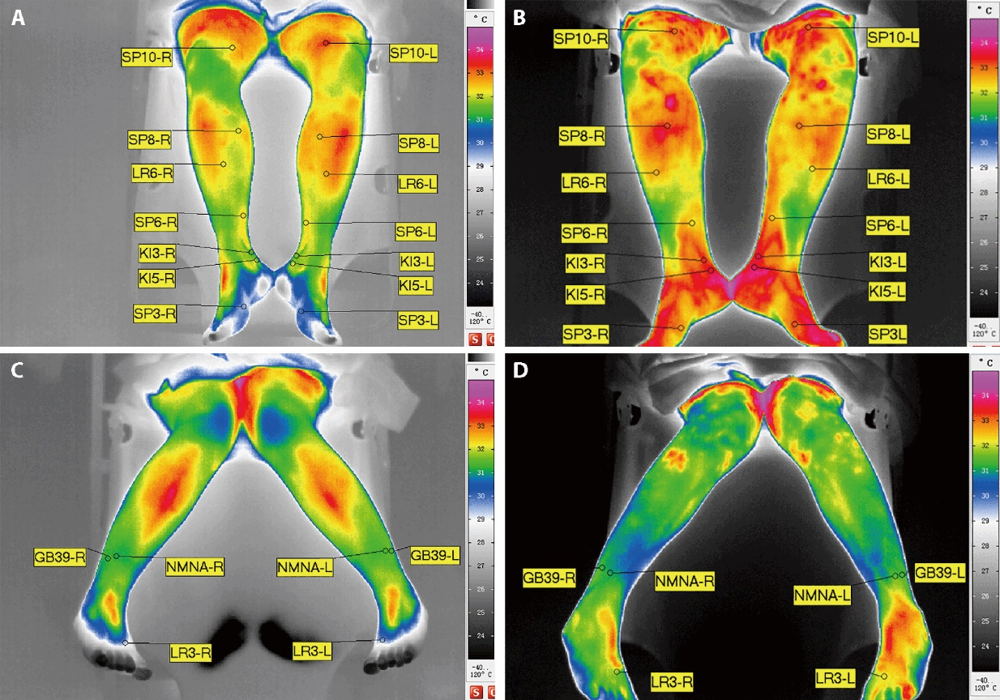

METHODS: We tested 10 acupoints of every woman with PD and healthy subjects on premenstrual, menstrual, and postmenstrual days using an infrared imaging device. The primary outcome was the absolute value of body surface temperature difference (AVTD) between the left and right sides of the same testing point.

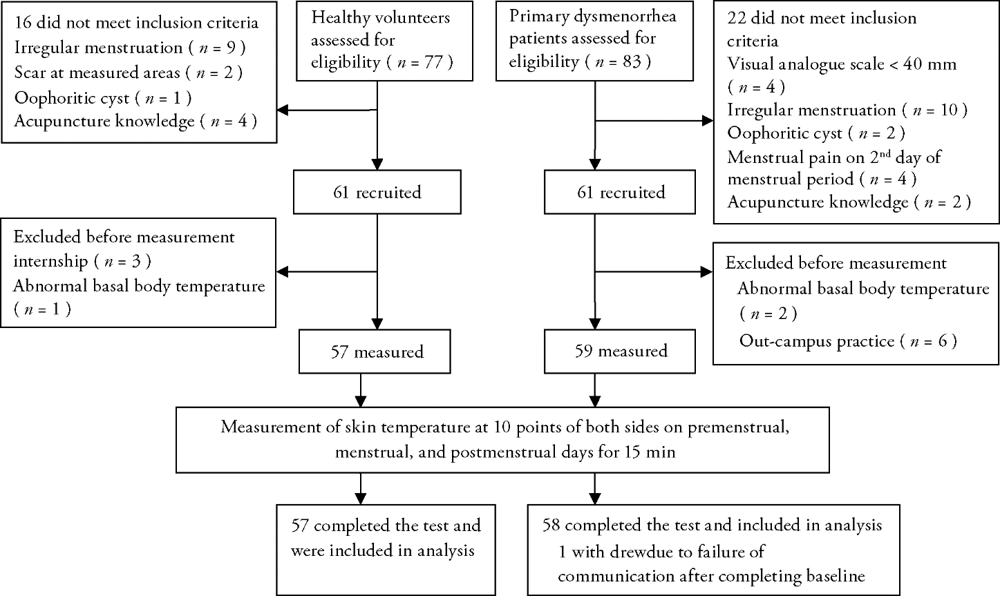

RESULTS: A total of 58 PD patients and 57 healthy volunteers completed the test from May 2016 to May 2017. Compared with the healthy group, we observed a significant reduction and increase in the AVTD in Taichong (LR3) and Sanyinjiao (SP6), respectively, during menstrual days in the PD group (P = 0.01; P = 0.04); while during postmenstrual days, all AVTDs of Shuiquan (KI5), Diji (SP8), and Xuehai (SP10) were diminished in the PD group (P = 0.01; P = 0.03; P = 0.01, respectively). No significant differences in AVTD were detected at any other points or testing times.

CONCLUSIONS: Compared with the healthy group, the AVTDs of Taichong (LR3), Sanyinjiao (SP6), Shuiquan (KI5), Diji (SP8), and Xuehai (SP10) at menstruation-relevant points of PD patients were sensitized, providing a reference for the selection of acupoints in the treatment of PD.

Key words: dysmenorrhea, menstruation, infrared thermal imaging, acupoint sensitization, specific acupoints

FAN Xisheng, DU Xiaoyi, PAN Lijia, SONG Xiaodan, LIU Jun, ZHANG Juncha, CHEN Hao, GAO Yayu, ZHANG Mingjian, SHI Xuliang, SHE Yanfen. An infrared thermographic analysis of the sensitization acupoints of women with primary dysmenorrhea[J]. Journal of Traditional Chinese Medicine, 2022, 42(5): 825-832.

Figures/Tables 6

References 42.

1.	Hannah D, Katie M, Brian EM. Prevalence and impact of dysmenorrhea among university students in Ireland. Pain Medicine 2021; 22: 2835-45. DOI PMID
2.	Harlow SD, Park M. A longitudinal study of risk factors for the occurrence, duration and severity of menstrual cramps in a cohort of college women. Br J Obstet Gynaecol 1996; 103: 1134-42. PMID
3.	Hillen TI, Grbavac SL, Johnston PJ, et al. Primary dysmenorrhea in young Western Australian women: prevalence, impact, and knowledge of treatment. J Adolesc Health 1999; 25: 40-5. DOI URL
4.	Burnett M, Lemyre M. No.345-primary dysmenorrhea consensus guideline.591. J Obstet Gynaecol Can 2017; 39: 585-95 DOI URL
5.	Lin WH, Ri JH, Kyoung PY, et al. The efficacy and safety of acupuncture in women with primary dysmenorrhea. Medicine 2018, 97: e11007. DOI URL
6.	Hu NJ, Liu YQ, Zhao MY, et al. Influence of the intensity, components, and spreading of the De Qi sensation on the analgesic effect of SP 6 needling in primary dysmenorrhea patients: a secondary analysis of a randomised controlled trial. Evid Based Complement Alternat Med 2019; 2019: 6462576.
7.	Wei HN, Jiang LP, Xiong B, et al. Characteristic patterns of normal meridian acupoint temperature. J Chin Med Assoc 2017; 80: 419-26. DOI URL
8.	Colbert AP, Spaulding KP, Ahn AC, Cutro JA, et al. Clinical utility of electrodermal activity at acupuncture points: a narrative review. Acupunct Med 2011; 29: 270-5. DOI PMID
9.	Zhang WT, Jin Z, Luo F, Zhang L, Zeng YW, Han JS. Evidence from brain imaging with fMRI supporting functional specificity of acupoints in humans. Neurosci Lett 2004; 354: 50-3. DOI URL
10.	Ren Y, Bai L, Feng Y, Tian J, Li KC. Investigation of acupoint specificity by functional connectivity analysis based on graph theory. Neurosci Lett 2010; 482: 95-100. DOI URL
11.	Zheng Y, Wang Y, Lan Y, et al. Imaging of brain function based on the analysis of functional connectivity - imaging analysis of brain function by fmri after acupuncture at lr3 in healthy individuals. Afr J Tradit Complement Altern Med 2016; 1: 90-100.
12.	Zhao L, Chen J, Li Y, et al. The long-term effect of acupuncture for migraine prophylaxis a randomized clinical trial. JAMA Intern Med 2021; 177: 508-15. DOI URL
13.	Zeng C, Yang H, Zhang H, et al. Researching status of the non-specific acupoint effect at home and abroad. Zhong Guo Zhong Yi Ji Chu Yi Xue Za Zhi 2016; 22: 1432-4.
14.	Xiao K, Wu SM. A clinical trial report on the medical value of infrared thermography. Ji Guang Za Zhi 2013; 34: 62-3.
15.	Litscher G, Wang L, Huang T, Zhang WB. Violet laser acupuncture--part 3: pilot study of potential effects on temperature distribution. J Acupunct Meridian Stud 2011; 4: 164-7. DOI PMID
16.	Zhou ZY, Yu L, Wei D, et al. Application of infrared thermal imaging technology in the meridian research of traditional Chinese medicine. Zhong Hua Zhong Yi Yao Za Zhi 2014; 29 : 2289-91.
17.	Agarwal KK, Lange AC, Beck H. Contact-free infrared thermography for assessing effects during acupuncture: a randomized, single-blinded, placebo-controlled crossover clinical trial. Anesthesiology 2009; 111: 632-9. DOI PMID
18.	Jo J, Kim H. Comparison of abdominal skin temperature between fertile and infertile women by infrared thermography: a diagnostic approach. J Therm Biol 2016; 61: 133-9. DOI URL
19.	Deng HP, Shen XY, Ding GH, et al. Study on the speciality of the infrared radiation at taiyuan(LU9). Zhong Hua Zhong Yi Yao Xue Kan 2008; 26: 494-5.
20.	She YF, Ma LX, Qi CH, et al. Do changes in electrical skin resistance of acupuncture points reflect menstrual pain? A comparative study in healthy volunteers and primary dysmenorrhea patients. Evid Based Complement Alternat Med 2014; 2014: 836026.
21.	Lefebvre G, Pinsonneault O, Antao V, et al. SOGC. Primary dysmenorrhea consensus guideline. J Obstet Gynecol Can 2005; 27: 1117-46.
22.	WHO Standard Acupuncture Point Locations in the Western Pacific Region. (Updated and Reprinted 2009). Manila: WHO Western Pacific Regional Publications 2008: 71-4, 137-8, 191-8.
23.	Ma YX, Ma LX, Liu XL, et al. A comparative study on the immediate effects of electroacupuncture at sanyinjiao (SP6), xuanzhong (GB39) and a non-meridian point, on menstrual pain and uterine arterial blood flow, in primary dysmenorrhea patients. Pain Med 2010; 11: 1564-75. DOI URL
24.	She YF, Zhu J, Ma LX, et al. Analysis on relevance between regional acupoint skin temperature and indoor temperature and humidity in healthy female volunteers during menstruation. Zhen Ci Yan Jiu 2012; 37: 145-50.
25.	World Health Organization Western Pacific Regional Office. WHO International Standard Terminologies on Traditional Medicine in the Western Pacific Region. Manila: WHO, 2007: 237.
26.	Kho KA, Shields JK. Diagnosis and management of primary dysmenorrhea. JAMA 2019; 323: 268-9. DOI URL
27.	Downman CBB. Skeletal muscle reflexes of splanchnic and intercostal nerve origin in acute spinal and decerebrate cats. J Neurophyaiol 1955; 18: 217-35.
28.	Yan ZG. Anatomical diagram of meridian and acupoint section (lower limb part). Shanghai: Shanghai publisher of Science and Technology, 2002: 68.
29.	Shen XY. Meridian acupoints. Beijing: Chinese Medicine Press, 2003: 148.
30.	Liu ZH, Xu NN. DE baird frochell Duus'Neurologisch-topische Diagnostik-Anatomic-Funktion-Klinik. Beijing: Ocean Press Publishing House, 2006: 22-24.
31.	Wang SD, Lin XX, Wang L. Analysis of meridian specificity and sensitization Of meridians. Zhong Hua Zhong Yi Yao Xue Kan 2018; 36: 2579-81.
32.	Zhu B. Systemic acupuncture and moxibustion: reviving "body surface medicine". Beijing: People's Military Medical Publisher, 2015: 371-4.
33.	Zhu B. The sensitization phenomenon of acupoint and biological significances. Zhong Guo Zhen Jiu 2019; 39: 115-21.
34.	Cheng B, Shi H, Ji CF, et al. Distribution of the activated acupoints after acute gastric mucosal injury in the rat. Zhen Ci Yan Jiu 2010; 35: 193-7.
35.	He W, Wu ML, Jing XH, et al. Entity of acupoint: kinetic changes of acupoints in historytochemistry. Zhong Guo Zhen Jiu 2015; 35: 1181-86.
36.	Wu ML, Xu DS, Bai WZ, et al. Local cutaneous nerve terminal and mast cell responses to manual acupuncture in acupoint LI4 area of the rats. J Chem Neuroanat 2015; 68: 14-21. DOI URL
37.	Yang HX, Di WN. Obstetrics and Gynaecology. Beijing: People's Medical Publishing House, 2016: 25.
38.	Fan XS, Liu J, She YF, et al. Research on the body surface resistance imbalance degree at yuan-source points of three Yin meridians of foot in the patients with primary dysmenorrhea. WJAM 2021; 31: 191-6
39.	Wang QQ. Comparative study on the characteristics of heat map of meridian points of triple energizer, Ren, Du, meridians in Yang deficiency population. Chengdu: Chengdu University of TCM, 2016: 52.
40.	Wang YR, Wang XL. Comparison of infrared temperature in different TCM syndromes of patients with PCOS. Liaoning Zhong Yi Yao Za Zhi 2016; 43: 1040-42+6.
41.	Zhang W, Yang JM, Zhang M, et al. Research on temperature of left and right points of dysmenorrhea rats with cold stagnation syndrome and effects of moxibustion intervention. Zhong Guo Zhong Yi Yao Xin Xi Za Zhi 2016; 23: 68-71.
42.	Chen Y. Observation the relationship betwen temperature differences on bilateral well-points and cervical spondolysis, Beijing: Beijing University of Chinese Medicine, 2015: 43.

Item	Group A (healthy group) (n = 57)	Group B (PD group) (n = 59)	P value
Age (years)	21.14±2.11	20.95±1.82	0.56
Age at menarche (years)	13.65±1.17	13.40±0.95	0.26
Duration of menstrual cycle (days)	29.51±1.98	29.34±1.36	0.67
Body temperature (the day before menses onset) (℃)	36.67±0.30	36.69±0.38	0.70
Body temperature (first day of menstrual period) (℃)	36.65±0.27	36.60±0.33	0.39
Body temperature (third day after menstrual period) (℃)	36.64±0.26	36.25±2.71	0.28

Item	Group A (healthy group) (n = 57)	Group B (PD group) (n = 59)	P value
Age (years)	21.14±2.11	20.95±1.82	0.56
Age at menarche (years)	13.65±1.17	13.40±0.95	0.26
Duration of menstrual cycle (days)	29.51±1.98	29.34±1.36	0.67
Body temperature (the day before menses onset) (℃)	36.67±0.30	36.69±0.38	0.70
Body temperature (first day of menstrual period) (℃)	36.65±0.27	36.60±0.33	0.39
Body temperature (third day after menstrual period) (℃)	36.64±0.26	36.25±2.71	0.28

Point	Group A1	Group A2	Group A3	Group B1	Group B2	Group B3	P^B¹^-A1 value	P^B2-A2value	P^B3-A3value
Point	(n = 57)	(n = 57)	(n = 57)	(n = 58)	(n = 58)	(n = 58)	P^B¹^-A1 value	P^B2-A2value	P^B3-A3value
Xuehai (SP10)	0.27 (0.13, 0.52)	0.22 (0.09, 0.51)	0.39 (0.21, 0.62)	0.24 (0.11, 0.45)	0.30 (0.09, 0.47)	0.22 (0.09, 0.51)	0.55	0.23	0.01^a
Diji (SP8)	0.30 (0.16, 0.51)	0.27 (0.11, 0.45)	0.37 (0.17, 0.64)	0.34 (0.15, 0.60)	0.26 (0.32, 0.53)	0.27 (0.11, 0.45)	0.36	0.08	0.03^a
Zhongdu (LR6)	0.20 (0.11, 0.36)	0.23 (0.11, 0.39)	0.21 (0.07, 0.45)	0.22 (0.11, 0.46)	0.26 (0.17, 0.45)	0.23 (0.11, 0.39)	0.5	0.32	0.8
Shuiquan (KI5)	0.30 (0.13, 0.56)	0.25 (0.12, 0.52)	0.26 (0.15, 0.51)	0.34 (0.18, 0.64)	0.38 (0.20, 0.66)	0.25 (0.12, 0.52)	0.28	0.57	0.01^a
Sanyinjiao (SP6)	0.36 (0.17, 0.52)	0.33 (0.13, 0.57)	0.41 (0.14, 0.68)	0.40 (0.28, 0.65)	0.37 (0.15, 0.72)	0.33 (0.13, 0.57)	0.48	0.04^a	0.95
Xuanzhong (GB39)	0.22 (0.10, 0.40)	0.31 (0.17, 0.55)	0.36 (0.13, 0.55)	0.30 (0.10, 0.57)	0.36 (0.12, 0.62)	0.31 (0.17, 0.55)	0.41	0.64	0.21
Non acupoint (NA)	0.35 (0.14, 0.71)	0.28 (0.15, 0.63)	0.44 (0.30, 0.81)	0.47 (0.20, 0.99)	0.41 (0.15, 0.93)	0.28 (0.15, 0.63)	0.15	0.37	0.86
Taixi (KI3)	0.40 (0.19, 0.59)	0.30 (0.13, 0.53)	0.33 (0.15, 0.60)	0.47 (0.28, 0.84)	0.38 (0.14, 0.70)	0.30 (0.13, 0.53)	0.06	0.48	0.57
Taibai (SP3)	0.45 (0.16, 0.86)	0.35 (0.14, 0.70)	0.43 (0.15, 0.81)	0.42 (0.23, 0.66)	0.50 (0.16, 1.10)	0.35 (0.14, 0.70)	0.96	0.62	0.43
Taichong (LR3)	0.30 (0.15, 0.63)	0.40 (0.20, 0.66)	0.31 (0.12, 0.65)	0.20 (0.36, 0.75)	0.09 (0.32, 0.50)	0.40 (0.19, 0.66)	0.15	0.01^a	0.29

Point	Group A1	Group A2	Group A3	Group B1	Group B2	Group B3	P^B¹^-A1 value	P^B2-A2value	P^B3-A3value
Point	(n = 57)	(n = 57)	(n = 57)	(n = 58)	(n = 58)	(n = 58)	P^B¹^-A1 value	P^B2-A2value	P^B3-A3value
Xuehai (SP10)	0.27 (0.13, 0.52)	0.22 (0.09, 0.51)	0.39 (0.21, 0.62)	0.24 (0.11, 0.45)	0.30 (0.09, 0.47)	0.22 (0.09, 0.51)	0.55	0.23	0.01^a
Diji (SP8)	0.30 (0.16, 0.51)	0.27 (0.11, 0.45)	0.37 (0.17, 0.64)	0.34 (0.15, 0.60)	0.26 (0.32, 0.53)	0.27 (0.11, 0.45)	0.36	0.08	0.03^a
Zhongdu (LR6)	0.20 (0.11, 0.36)	0.23 (0.11, 0.39)	0.21 (0.07, 0.45)	0.22 (0.11, 0.46)	0.26 (0.17, 0.45)	0.23 (0.11, 0.39)	0.5	0.32	0.8
Shuiquan (KI5)	0.30 (0.13, 0.56)	0.25 (0.12, 0.52)	0.26 (0.15, 0.51)	0.34 (0.18, 0.64)	0.38 (0.20, 0.66)	0.25 (0.12, 0.52)	0.28	0.57	0.01^a
Sanyinjiao (SP6)	0.36 (0.17, 0.52)	0.33 (0.13, 0.57)	0.41 (0.14, 0.68)	0.40 (0.28, 0.65)	0.37 (0.15, 0.72)	0.33 (0.13, 0.57)	0.48	0.04^a	0.95
Xuanzhong (GB39)	0.22 (0.10, 0.40)	0.31 (0.17, 0.55)	0.36 (0.13, 0.55)	0.30 (0.10, 0.57)	0.36 (0.12, 0.62)	0.31 (0.17, 0.55)	0.41	0.64	0.21
Non acupoint (NA)	0.35 (0.14, 0.71)	0.28 (0.15, 0.63)	0.44 (0.30, 0.81)	0.47 (0.20, 0.99)	0.41 (0.15, 0.93)	0.28 (0.15, 0.63)	0.15	0.37	0.86
Taixi (KI3)	0.40 (0.19, 0.59)	0.30 (0.13, 0.53)	0.33 (0.15, 0.60)	0.47 (0.28, 0.84)	0.38 (0.14, 0.70)	0.30 (0.13, 0.53)	0.06	0.48	0.57
Taibai (SP3)	0.45 (0.16, 0.86)	0.35 (0.14, 0.70)	0.43 (0.15, 0.81)	0.42 (0.23, 0.66)	0.50 (0.16, 1.10)	0.35 (0.14, 0.70)	0.96	0.62	0.43
Taichong (LR3)	0.30 (0.15, 0.63)	0.40 (0.20, 0.66)	0.31 (0.12, 0.65)	0.20 (0.36, 0.75)	0.09 (0.32, 0.50)	0.40 (0.19, 0.66)	0.15	0.01^a	0.29
