Research on acupuncture robots based on the OptiTrack motion capture system and a robotic arm

doi:10.19852/j.cnki.jtcm.2025.01.020

Abstract

Abstract:

OBJECTIVE: To propose an automatic acupuncture robot system for performing acupuncture operations.

METHODS: The acupuncture robot system consists of three components: automatic acupoint localization, acupuncture manipulations, and De Qi sensation detection. The OptiTrack motion capture system is used to locate acupoints, which are then translated into coordinates in the robot control system. A flexible collaborative robot with an intelligent gripper is then used to perform acupuncture manipulations with high precision. In addition, a De Qi sensation detection system is proposed to evaluate the effect of acupuncture. To verify the stability of the designed acupuncture robot, acupoints’ coordinates localized by the acupuncture robot are compared with the Gold Standard labeled by a professional acupuncturist using significant level tests.

RESULTS: Through repeated experiments for eight acupoints, the acupuncture robot achieved a positioning error within 3.3 mm, which is within the allowable range of needle extraction and acupoint insertion. During needle insertion, the robot arm followed the prescribed trajectory with a mean deviation distance of 0.02 mm and a deviation angle of less than 0.15°. The results of the lifting thrusting operation in the Xingzhen process show that the mean acupuncture depth error of the designed acupuncture robot is approximately 2 mm, which is within the recommended depth range for the Xingzhen operation. In addition, the average detection accuracy of the De Qi keywords is 94.52%, which meets the requirements of acupuncture effect testing for different dialects.

CONCLUSION: The proposed acupuncture robot system streamlines the acupuncture process, increases efficiency, and reduces practitioner fatigue, while also allowing for the quantification of acupuncture manipulations and evaluation of therapeutic effects. The development of an acupuncture robot system has the potential to revolutionize low back pain treatment and improve patient outcomes.

Key words: acupuncture robot, acupuncture quantification, acupoint location, De Qi detection

HE Ling, YANG Hui, LI Kang, WANG Junwen, SUN Zhibo, YANG Jinsheng, ZHANG Jing. Research on acupuncture robots based on the OptiTrack motion capture system and a robotic arm[J]. Journal of Traditional Chinese Medicine, 2025, 45(1): 201-212.

Figures/Tables 6

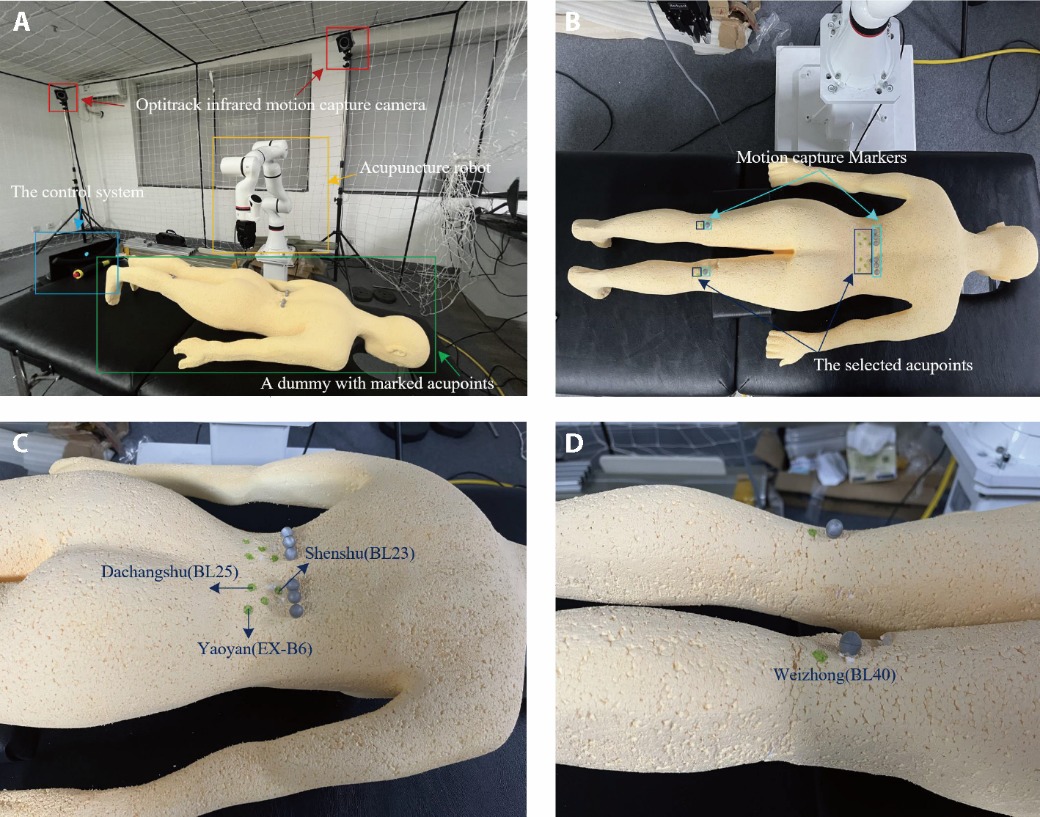

Figure 1 The experimental setup of acupuncture robot for treating low back pain A: the experimental setup of acupuncture robot system; B: the selected acupoints; C: the acupoints in the lumbar region; D: Weizhong (BL40) acupoint; : optitrack infrared motion capture camera; : motion capture Markers; : the control system (A computer); : acupuncture robot; : a dummy with marked acupoints; : the selected acupoints.

Figure 2 The acupuncture process of the proposed acupuncture robot system acupoints

Table 1 Results of the repeatability experiments for positioning accuracy of the robot (mm)

The positioning target	Minimum error	Maximum error	Mean error	Standard deviation
Needle-grabbing location	1.73	3.57	1.97	0.20
Yaoyan (EX-B6) (r)	1.25	1.60	1.47	0.08
Shenshu (BL23) (r)	1.47	2.76	1.62	0.27
Dachangshu (BL25) (r)	1.23	1.71	1.52	0.10
Weizhong (BL40) (r)	1.99	2.58	2.31	0.16
Yaoyan (EX-B6) (l)	1.54	1.68	1.62	0.04
Shenshu (BL23) (l)	1.35	1.70	1.50	0.08
Dachangshu (BL25) (l)	1.46	2.56	1.62	0.22
Weizhong (BL40) (l)	2.07	2.71	2.41	0.20

Table 2 Results of the trajectory accuracy

The name of the acupuncture point	MDD (mm)	DA ( $°$ )
Yaoyan (EX-B6) (r)	0.01	0.03
Shenshu (BL23) (r)	0.01	0.02
Dachangshu (BL25) (r)	0.01	0.04
Weizhong (BL40) (r)	0.02	0.02
Yaoyan (EX-B6) (l)	0.02	0.03
Shenshu (BL23) (l)	0.01	0.01
Dachangshu (BL25) (l)	0.02	0.04
Weizhong (BL40) (l)	0.02	0.06

Table 2 Results of the trajectory accuracy

The name of the acupuncture point	MDD (mm)	DA ( $°$ )
Yaoyan (EX-B6) (r)	0.01	0.03
Shenshu (BL23) (r)	0.01	0.02
Dachangshu (BL25) (r)	0.01	0.04
Weizhong (BL40) (r)	0.02	0.02
Yaoyan (EX-B6) (l)	0.02	0.03
Shenshu (BL23) (l)	0.01	0.01
Dachangshu (BL25) (l)	0.02	0.04
Weizhong (BL40) (l)	0.02	0.06

Table 3 Results of the Deqi sensation detection system

Keyword	Number of samples	Accuracy (%)	Recall (%)	F1 score
"Tong"	355	97.01	93.24	0.96
"Suan"	200	98.07	91.00	0.95
"Zhang"	234	97.97	94.44	0.96
"Ma"	219	97.33	97.26	0.94
All	935	95.19	95.19	0.98

Table 4 Significant level test results between acupoints’ coordinates localized by the robot and the Gold standard

Number of experiments	P value			Number of experiments	P value
Number of experiments	x-coordinates	y-coordinates	z-coordinates	Number of experiments	x-coordinates	y-coordinates	z-coordinates
1	0.97	0.88	0.48	11	0.96	0.88	0.46
2	0.97	0.86	0.47	12	0.96	0.88	0.46
3	0.97	0.88	0.47	13	0.96	0.91	0.46
4	0.96	0.85	0.46	14	0.96	0.89	0.46
5	0.97	0.88	0.46	15	0.96	0.88	0.46
6	0.96	0.87	0.46	16	0.96	0.88	0.46
7	0.96	0.87	0.47	17	0.96	0.87	0.46
8	0.96	0.87	0.47	18	0.96	0.88	0.46
9	0.96	0.88	0.46	19	0.96	0.88	0.46
10	0.96	0.88	0.46	20	0.96	0.88	0.46

References 40.

1.	Wang RQ, Lyu JH, Jia CS. Revelation and reflection of overseas acupuncture to acupuncture in China. Zhong Guo Zhen Jiu 2020; 40: 1123-7.
2.	Wang Y, Shi X, Efferth T, Shang D. Artificial intelligence-directed acupuncture: a review. Chin Med 2022; 17: 80.
3.	Li T, Wang S, Cheng K, Sun L, et al. Comparing the efficacy of two different temperature stimulation in warm acupuncture on acute low back pain: a randomized controlled trial. Integr Med Res 2022; 11: 100748.
4.	Park JE, Ryu YH, Liu Y, et al. A literature review of De Qi in clinical studies. Acupunct Med 2013; 31: 132-42.
5.	Si X, Han S, Zhang K, et al. The temporal dynamics of EEG microstate reveals the neuromodulation effect of acupuncture with De Qi. Front Neurosci 2021; 15: 715512.
6.	Bäumler PI, Simang M, Kramer S, Irnich D. Acupuncture point localization varies among acupuncturists. Forsch Komple-mentmed 2012; 19: 31-7.
7.	Zhang R, Lao L, Ren K, Berman BM. Mechanisms of acu-puncture-electroacupuncture on persistent pain. Anesthesiology 2014; 120: 482-503.
8.	Guo Y, Wei W, Chen JD. Effects and mechanisms of acupuncture and electroacupuncture for functional dyspepsia: a systematic review. World J Gastroenterol 2020; 26: 2440.
9.	Xu T, Xia Y. Guidance for acupuncture robot with potentially utilizing medical robotic technologies. Evid Based Complement Alternat Med 2021; 2021: 8883598.
10.	Xu T, Wang X, Lu D, et al. Developing trend and key technical analysis of intelligent acupuncture robot. Chin J Intell Sci Technol 2019; 1: 305-10.
11.	Xu TC, Xia YB. Research and development of intelligent medical equipment and internationalization of acupuncture and moxibustion: thoughts from researchers of acupuncture robot. Zhong Guo Zhen Jiu 2022; 42: 199-202.
12.	Litscher G, Schwarz G, Sandner-Kiesling A, Hadolt I. Transcranial doppler ultrasound--robotics-controlled transducers for quantifying the effect of acupuncture. Biomed Tech 1997; 42: 116-22.
13.	Litscher G, Wang L, Yang NH, Schwarz G. Computer-controlled acupuncture. Quantification and separation of specific effects. Neurol Res 1999; 21: 530-4. DOI PMID
14.	Zhang JX, Sun Q, Lin Q, et al. Exploring the idea of developing digital meridian intelligent acupuncture robot. Zhong Yi Yao Dao Bao 2018; 24: 66-8.
15.	Liu Z, Zhao Z, Lin Q, Xu T. Research on acupoint selection theory of intelligent acupuncture robot based on graph theory. World J Tradit Chin Med 2018; 8: 1992-6.
16.	Lan KC, Litscher G. Robot-controlled acupuncture—an innovative step towards modernization of the ancient traditional medical treatment method. Medicines 2019; 6: 87.
17.	Su J, Zhu Y, Zhu M. Hand-eye-force coordination of acupuncture robot. IEEE Access 2019; 7: 82154-61. DOI
18.	Ta WC, Ya HY, Liu TY, Gao M, Xu G. Study on quantification and classification of acupuncture lifting-thrusting manipulations on the basis of motion video and self-organizing feature map neural network. Shanghai Zhen Jiu Za Zhi 2017; 36: 1012-20.
19.	Yin T, He ZX, Sun RR, et al. Progress and prospect of machine learning in research of acupuncture and moxibustion. Zhong Guo Zhen Jiu 2020; 40: 1383-6.
20.	Gou SY, Su C, Wang L, Zhao YN, Chen J. Recognition system of acupuncture manipulations based on an array PVDF tactile sensor and machine learning. Zhen Ci Yan Jiu 2021; 46: 474-9.
21.	Tu T, Su YH, Su C, Wang L, Zhao YN, Chen J. Development and application of computer vision-based acupuncture manipulation classification system. Zhen Ci Yan Jiu 2021; 46: 469-73.
22.	Chan TW, Zhang C, Ip WH, Choy AW. A combined deep learning and anatomical inch measurement approach to robotic acupuncture points positioning. Annu Int Conf IEEE Eng Med Biol Soc 2021; 2021: 2597-600. DOI PMID
23.	Urits I, Wang JK, Yancey K, et al. Acupuncture for the management of low back pain. Curr Pain Headache Rep 2021; 25: 1-10.
24.	Valarezo-García C, Espinosa PV. Efecto terapéutico de la acupuntura en el dolor lumbosacro. Revista Internacional de Acupuntura 2022; 16: 100189.
25.	Zhang S, Yang G. Acupuncture at xinbaliao point in treating a case of urinary retention after rectal cancer surgery. Proc Anticancer Res 2021; 5: 40-2.
26.	Liang FR, Chen J. Die akupunktur- und moxibustionsbehandlung von neurologischen erkrankungen: eine praktische anleitung und ihre klinische anwendung — teil 2: lumbalgie. Zhong Yi Xue Bao 2018; 33: 103-10.
27.	Luo R, Zhang W, Shi WY, Ye Y, Zhang PM, Xiao D. Analysis on points selection of acupuncture and moxibustion treatment for lumbar pain in ancient literature. Zhong Yi Yao Dao Bao 2021; 27: 126-30.
28.	Yi A, Qin X, Du Z, Wang T, Liu F. Clinical observation on the improvement of serum sex hormone and ovarian function in premature ovarian failure patients with deficiency-cold syndrome by combining Wenjing decoction with Tiaobu Chongren acupuncture and moxibustion. Evid Based Complement Alternat Med 2021; 2021: 1-9.
29.	Wang ZZ, Zhang J, Li DH. Comparison of pain thresholds of acupoints on the leg in healthy volunteers. Zhen Ci Yan Jiu 2013; 38: 68-72.
30.	Wang M. Acupuncture styles in current practice. Translational acupuncture research 2019: 75-163.
31.	Hu R, Pan JK, Li JH, Zhang Y. Exploration on the origin of needle manipulation techniques described in textbooks of acupuncture and moxibustion. Shi Jie Ke Xue Ji Shu - Zhong Yi Yao Xian Dai Hua 2021; 23: 2969-76.
32.	Si X, Xiang S, Zhang L, Li S, Zhang K, Ming D. Acupuncture with De Qi modulates the hemodynamic response and functional connectivity of the prefrontal-motor cortical network. Front Neurosci 2021; 15: 693623.
33.	Liu K, Chen Y, Liu C, et al. De Qi effect for treating knee osteoarthritis using manual acupuncture: a network Meta-analysis. J Tradit Chin Med 2021; 8: 343-52.
34.	Sun R, He Z, Ma P, et al. The participation of basolateral amygdala in the efficacy of acupuncture with De Qi treating for functional dyspepsia. Brain Imaging Behav 2021; 15: 216-30.
35.	Park DS, Chan W, Zhang Y, et al. Specaugment:a simple data augmentation method for automatic speech recognition. In:Interspeech Conference 2019; 2019 Sep 15-19; Graz, Austria. Graz: ISCA, 2019: 2613-17.
36.	Lan KC, Lee CY, Lee GS, Tsai TH, Lee YC, Wang CY. An initial study on automated acupoint positioning for laser acupuncture. Evid Based Complement Alternat Med 2022; 2022: 1-9.
37.	Mao JF, Zhang JB, Zhang SS, Chen ZY, Wang XJ. Evolvement of acupuncture needle manipulation techniques described in textbooks of acupuncture and moxibustion of successive editions. Zhen Ci Yan Jiu 2018; 43: 394-7.
38.	Wang D, Zhang X. Thchs-30:a free Chinese speech corpus. CSLT Technical Report, 2015-01-01, cited 2024-12-11; Available from: http://cslt.org/.
39.	Bu H, Du JY, Na XY, Wu BG, Zheng H. Aishell-1: an open-source mandarin speech corpus and a speech recognition baseline. In: 2017 20th conference of the oriental chapter of the international coordinating committee on speech databases and speech I/O systems and assessment (O-COCOSDA) 2017 Nov 1(pp. 1-5). IEEE.
40.	Yang Z, Chen Y, Luo L, et al. Open source magicdata-ramc:a rich annotated mandarin conversational (ramc) speech dataset. In:Interspeech Conference 2022; 2022 Sep 18-22; Incheon, South Korea. Incheon: ISCA, 2022: 1736-40.
