Research and development of the pulse acquisition system and the pulse biomimetic reproduction system

YI Kai1, MA Yunjing2, GUO Shen2, LIU Heng2, XU Bin1()

  1. 1 the First Clinical College, Liaoning University of Traditional Chinese Medicine, Shenyang 110000, China
    2 Research and Development Department, Shenyang Traditional Chinese Medicine Intelligent Medical Equipment Industry Technology Research Institute, Shenyang 110000, China
  • Received:2023-12-22 Accepted:2024-04-15 Online:2025-02-15 Published:2025-01-10
  • Contact: XU Bin, the First Clinical College, Liaoning University of Traditional Chinese Medicine, Shenyang 110000, China, 1029913507@qq.com Telephone: +86-18102401575
  • Supported by:
    Key R&D Plan of Liaoning Province(202000357-JH13/103);Construction of Liaoning Traditional Chinese Medicine Industry Technology Innovation Research Institute; National Key Research and Development Plan Special Project(2019JH2/10300040)

Abstract:

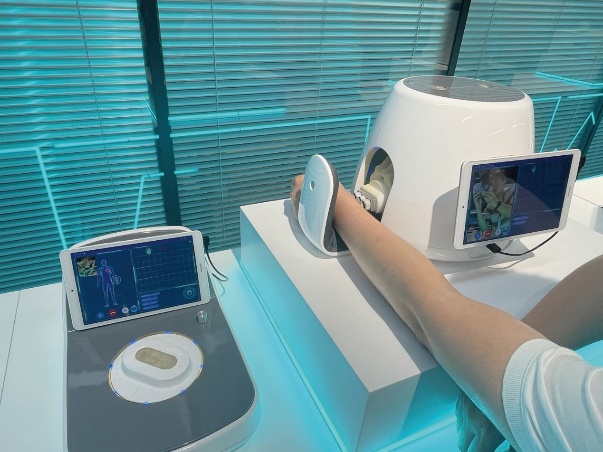

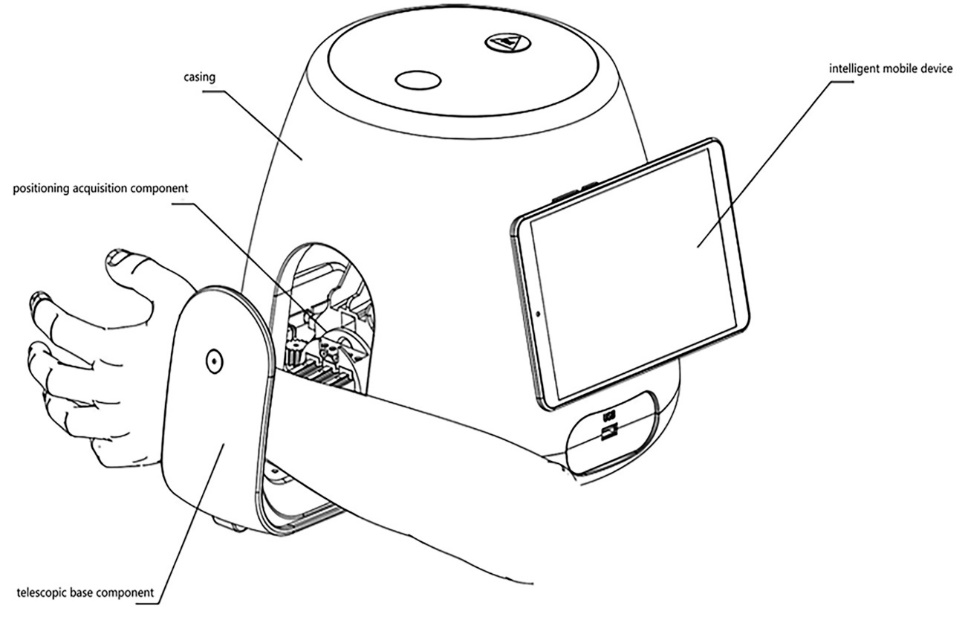

The paper is an introduction to the front-end pulse acquisition and the back-end pulse biomimetic reproduction system. This system is capable of faithfully replicating the complete pulse waveform collected at the front end. Traditional Chinese Medicine (TCM) practitioners analyze and diagnose the pulse patterns at the replication end. Meanwhile, the obtained pulse waveforms are analyzed and learnt by a neural network based on key diagnostic points in TCM pulse taking, which enables the determination of the corresponding relationships between different pulse waveforms and various pulse patterns in TCM pulse taking. With the support of clinical samples, an auxiliary diagnostic system for TCM pulse patterns ensures the accuracy of pulse pattern replication.

Key words: pulse taking, medicine, Chinese traditional, pulse acquisition system, pulse biomimetic reproduction system

Cite this article

YI Kai, MA Yunjing, GUO Shen, LIU Heng, XU Bin. Research and development of the pulse acquisition system and the pulse biomimetic reproduction system[J]. Journal of Traditional Chinese Medicine, 2025, 45(1): 213-220.
